QT6-15 Concrete Block Machine

The forced synchronous vibration system of the molding machine can adjust the vibration excitation force through

+86 595-22682555

Features

1. The forced synchronous vibration system of the molding machine can adjust the vibration excitation force through frequency conversion technology and make use of rigid transmission to ensure accurate synchronization, less energy consumption and better excitation effect without kinetic energy loss.

2. It adopts vertical synchronous vibration technology for fast molding speed and high quality products.

3. The production line adopts Siemens touch screen human-machine interface control system from automatic batching to finished product palletizing in the whole process, which can realize remote control, system upgrade, fault diagnosis functions, etc.

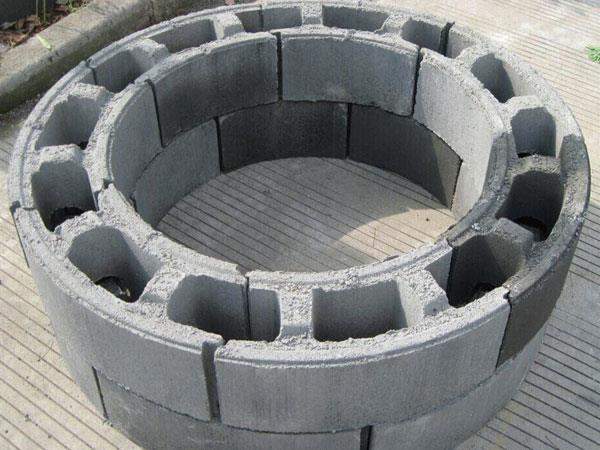

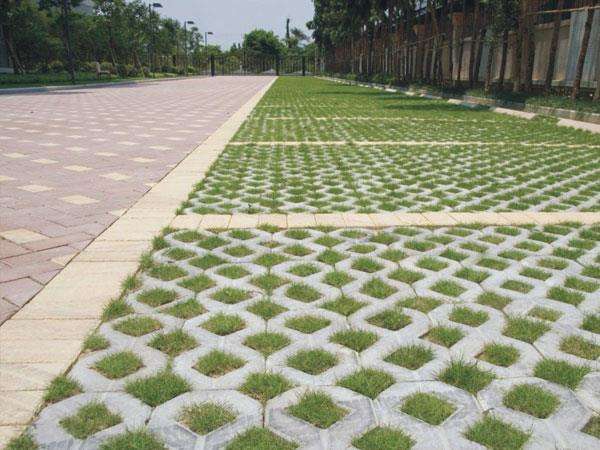

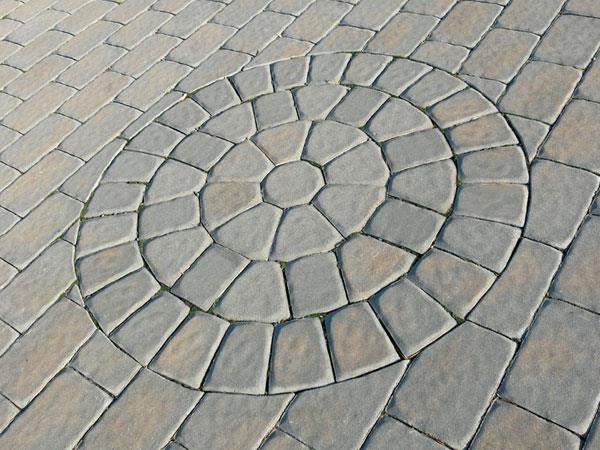

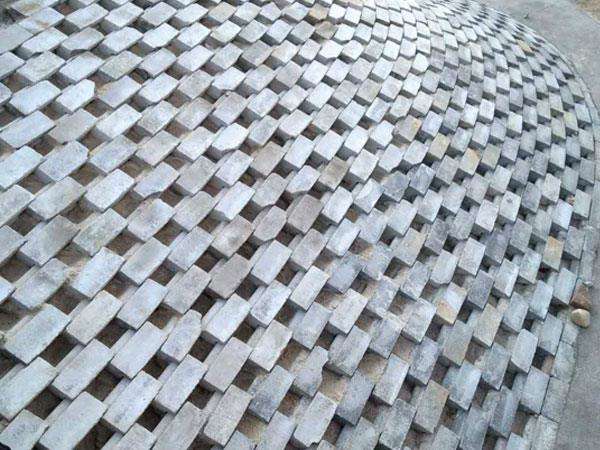

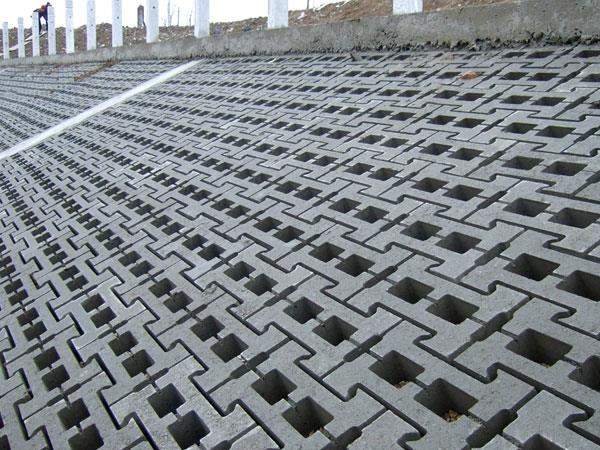

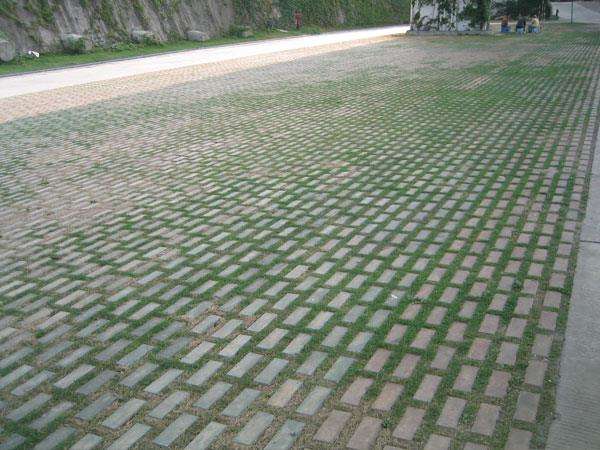

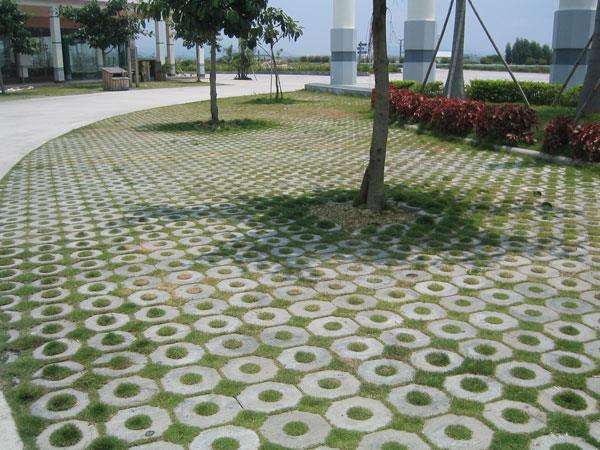

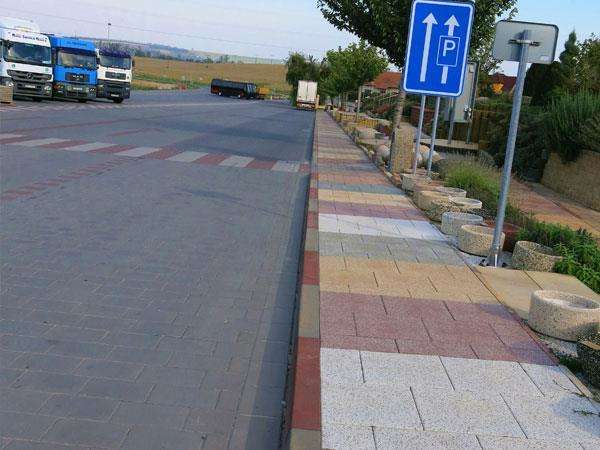

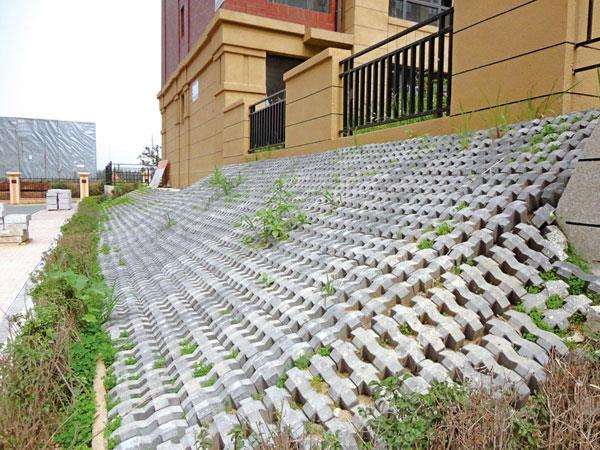

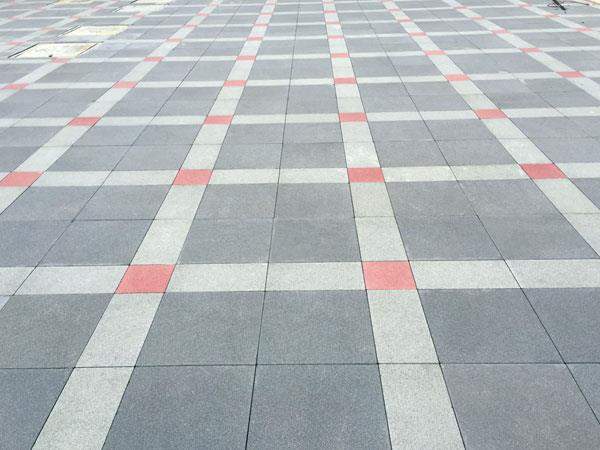

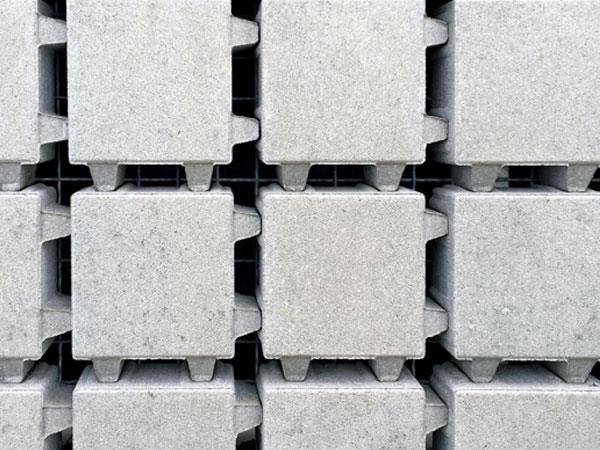

4. One machine can be multi-purpose and moulds can be changed to produce different types of products, such as municipal pavement bricks, water conservancy and hydraulic brick products and hollow blocks.

Parameter

Overall dimension	4290×1950×2750mm	Vibration method	Table mould resonate
Pallet size	880×680×20mm(PVC)	Vibration frequency	50-70hz
Working area	800×600mm	Installed capacity	45kw
Machine weight	10500kg	Circle time	15s-25s Depending on the product size

Production Capacity

Specification of products(mm)		Number of blocks per pallet	Pieces/1 hour	Pieces/8hours	Pieces/300 day(two shifts)

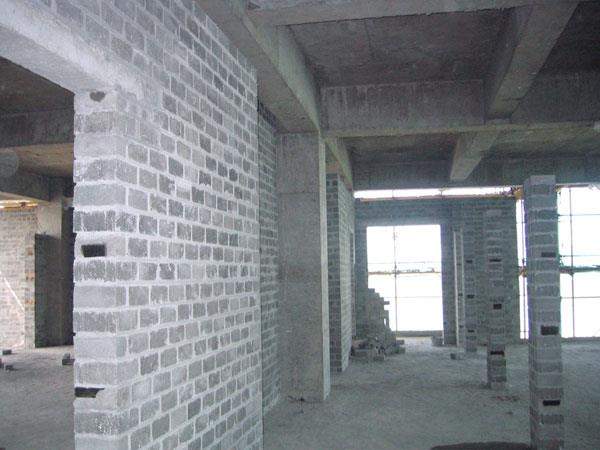

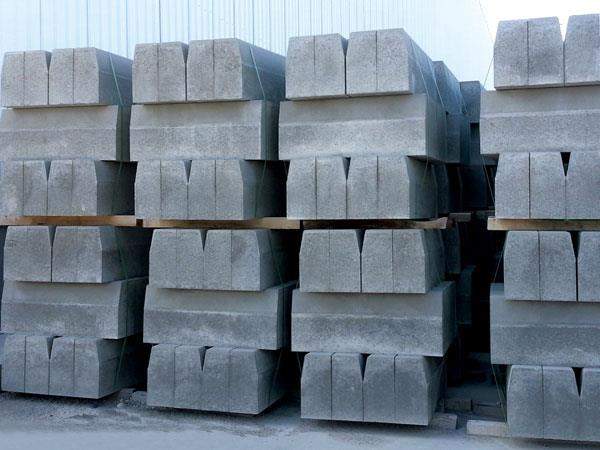

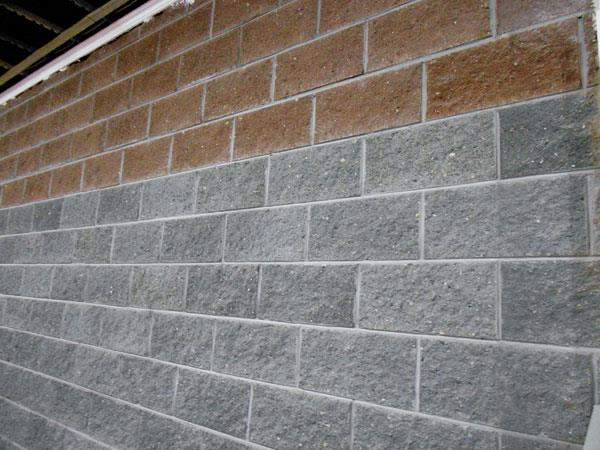

Block	400×200×200 390×190×190	6	1,400	11,520	6,912,000
Hollow Brick	240×115×90	15	3,600	28,800	17,280,000

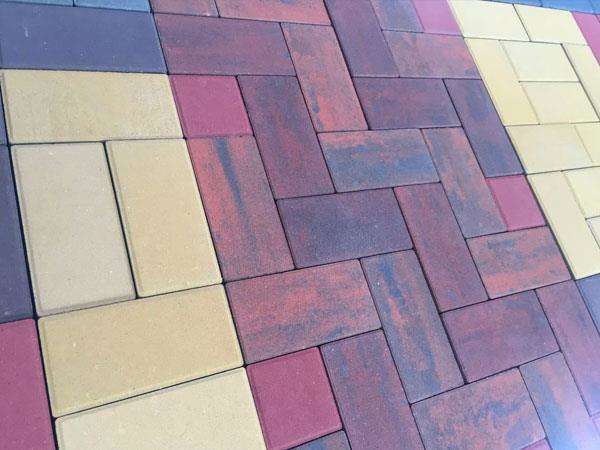

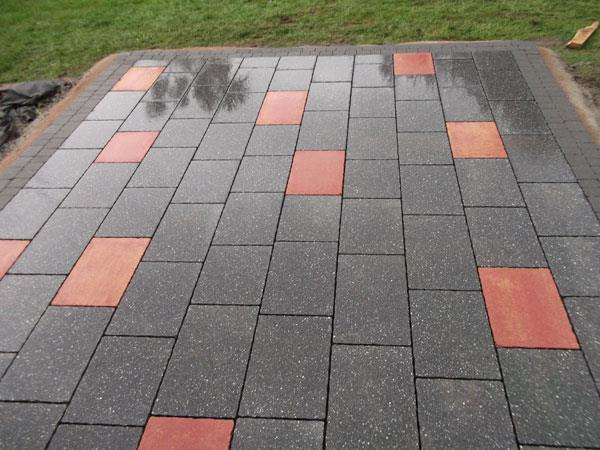

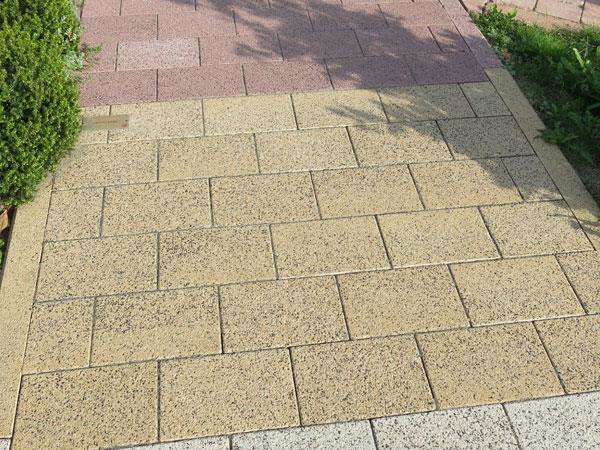

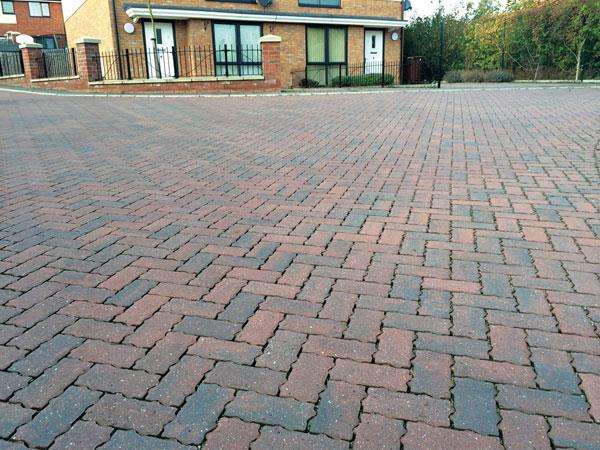

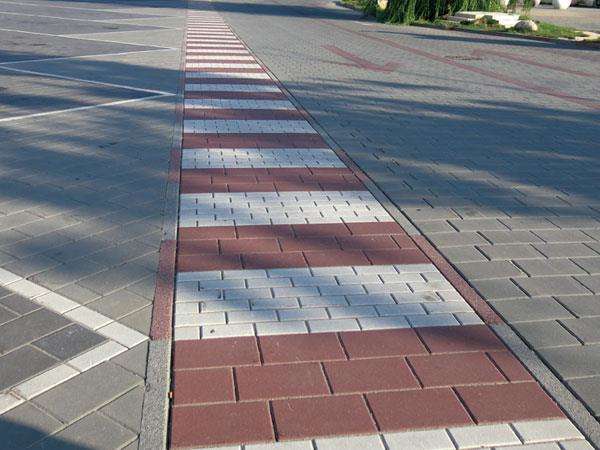

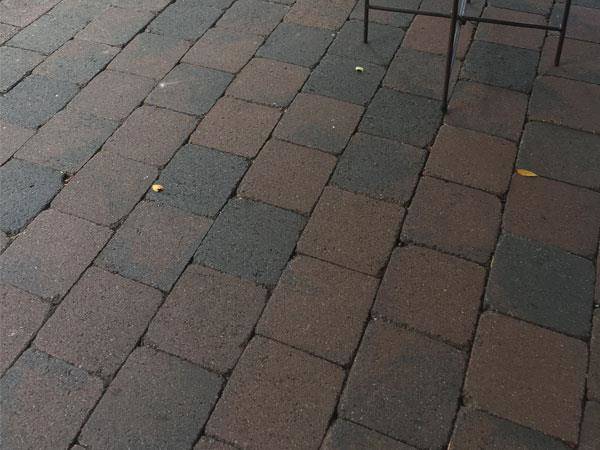

Paving Brick	225×112.5×60	15	3,600	28,800	17,280,000
Standard Brick	240×115×53	30	7,200	57,600	34,560,000
