QT10-15 Block Making Machine

The products with production height up to 400mm can be customized. It is applicable to the production

+86 595-22682555

Features

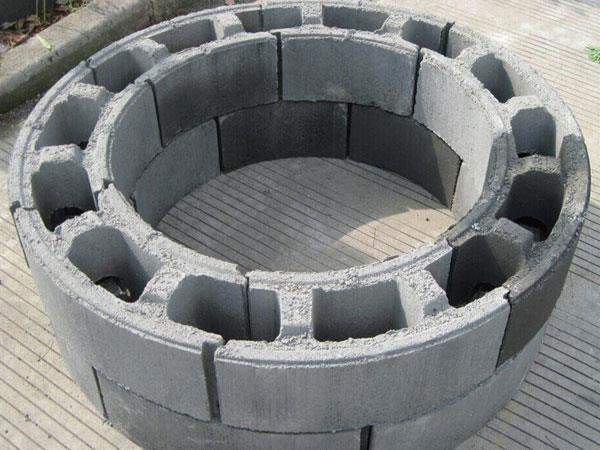

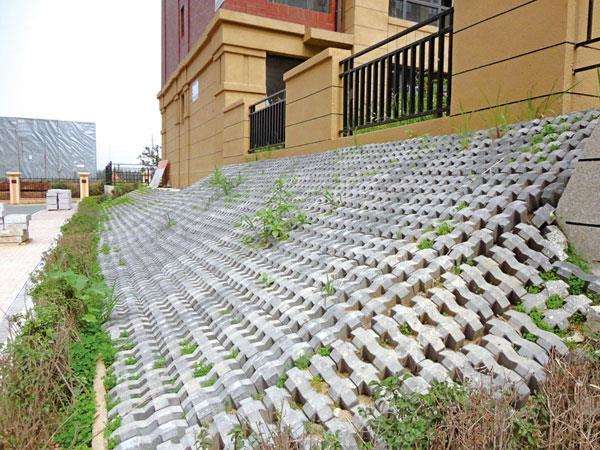

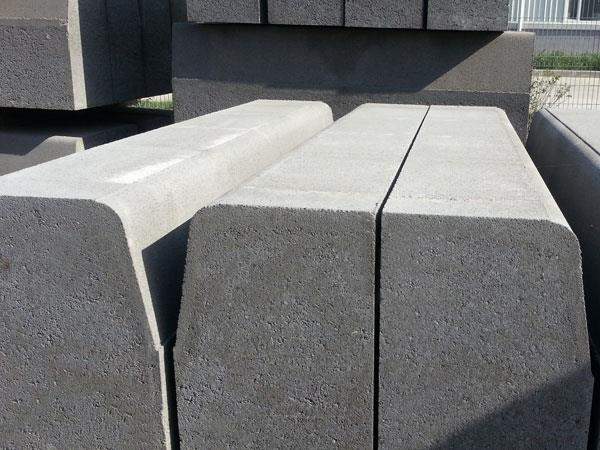

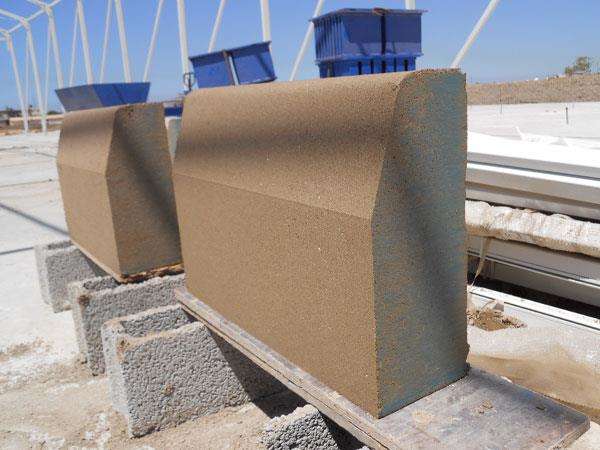

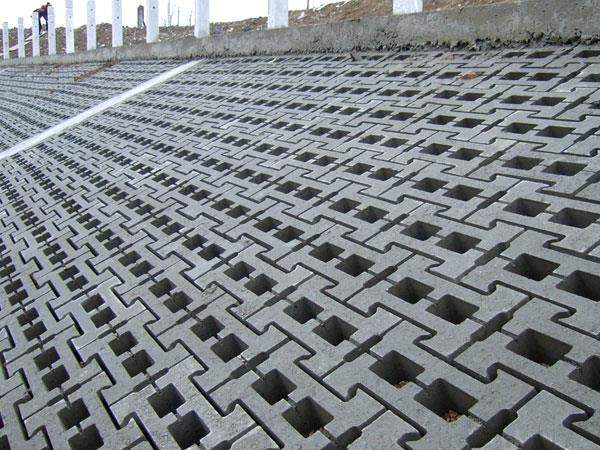

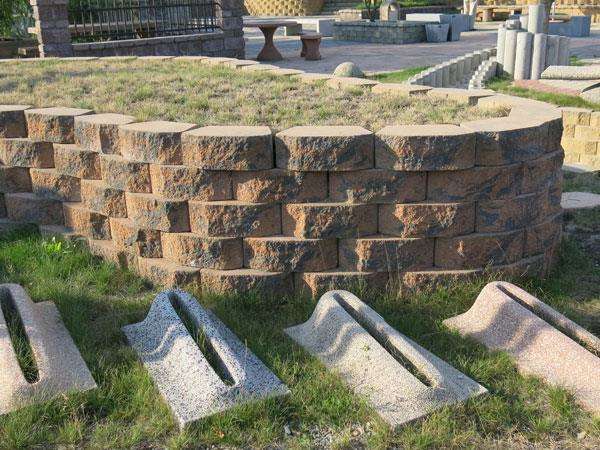

1. The products with production height up to 400mm can be customized. It is applicable to the production of large block products, large pieces of hydraulic revetment and road traffic stone, etc.
2. It can realize vertical production and optional layered material displacement, which can increase output and get a better appearance of products.
3. The forced centrifugal feeding system can prevent concrete liquefaction in advance. The mechanism works and realizes the forced centrifugal discharge so that materials are ready to use immediately after unloading and the material displacement is fast and uniform.
4. Four-axis synchronous vibration system integrates computer control, Schneider frequency conversion system, motor drive control and other technologies.
5. All of the control apparatus is international brands such as Fuji, Siemens, ABB and Schneider, which can ensure the quality.
6. The 25% enhanced vibration system has a good vibration effect for ultra-high products.

Parameter

Overall dimension	5200×2350×2850mm	Vibration method	Table mould resonate
Pallet size	1120×880×45mm(木板) /25mm(PVC)	Vibration frequency	50-70hz
Working area	1050×800mm	Installed capacity	49.5kw
Machine weight	13800kg	Circle time	15s-25s Depending on the product size

Production Capacity

Specification of products(mm)		Number of blocks per pallet	Pieces/1 hour	Pieces/8 hour	Pieces/300 day(two shifts)

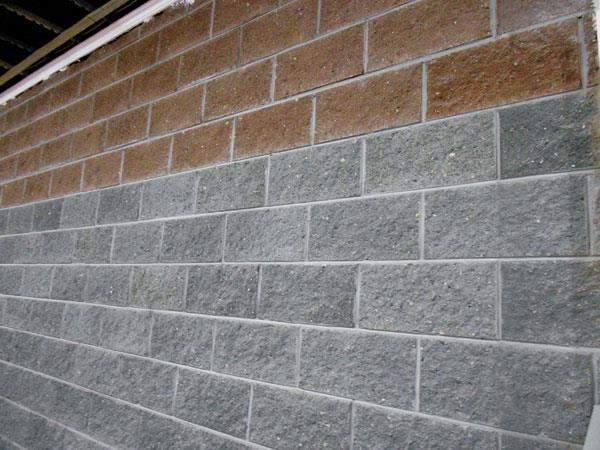

Block	390×190×190	10	2,400	19,200	11,520,000
Hollow Brick	240×115×90	24	5,760	46,080	27,648,000

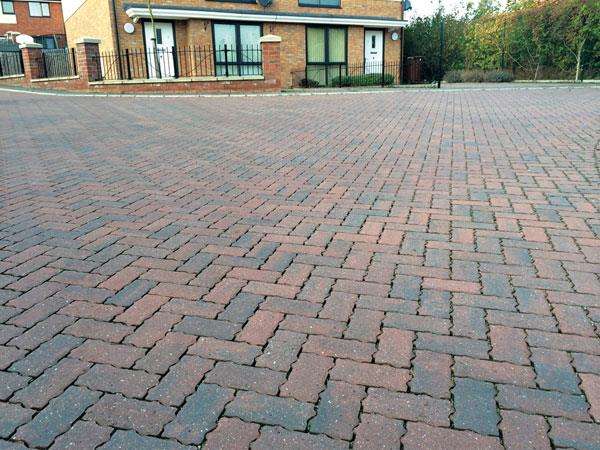

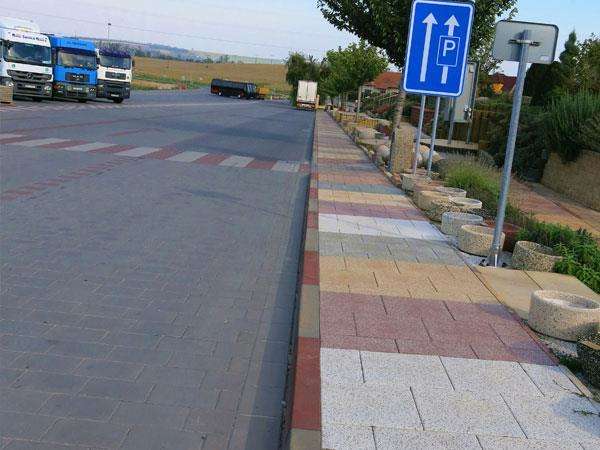

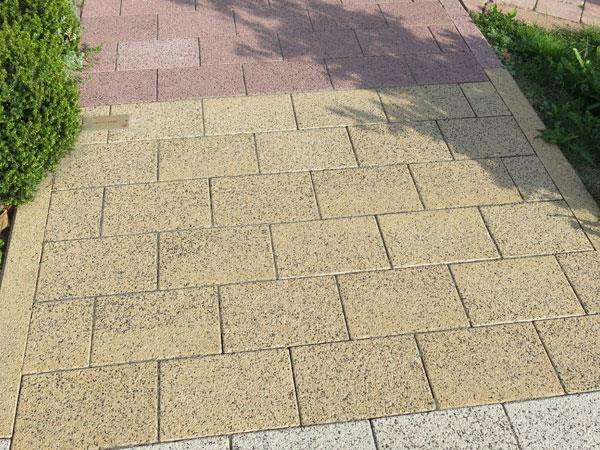

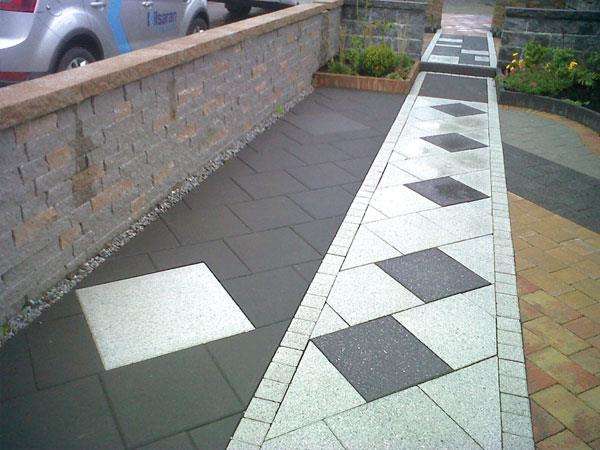

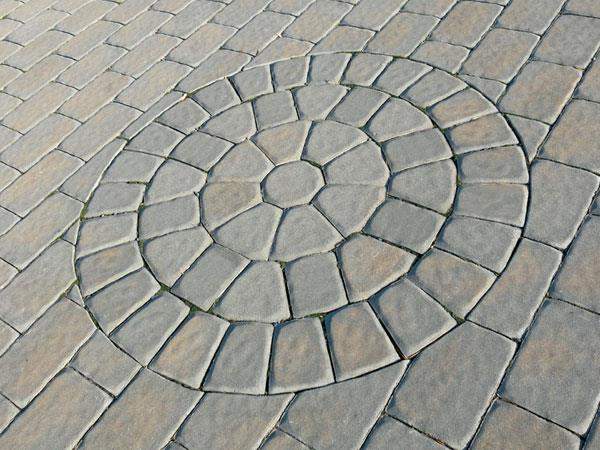

Paving Brick	225×112.5×60	24	5,760	46,080	27,648,000
Standard Brick	240×115×53	48	11,520	92,160	55,296,000
